SK Type CAPT-LOCKS

Range of product: ANSI/DIN:(SK) Inch size product (Apply to ANSI market) Metric size product (Apply to DIN market) SK Type CAPT-LOCKS

Product Details

Parameters Introduction：

SK NSPT-LOCKS is the developed type of SD NSPT-LOCKS.They are best suitable for joints between long

shafts and hubs to transmitting lager torques. With no special requirement on shaft diameters and precision,

this type of locks can be used to replace couplings in some mechanical transmissions.

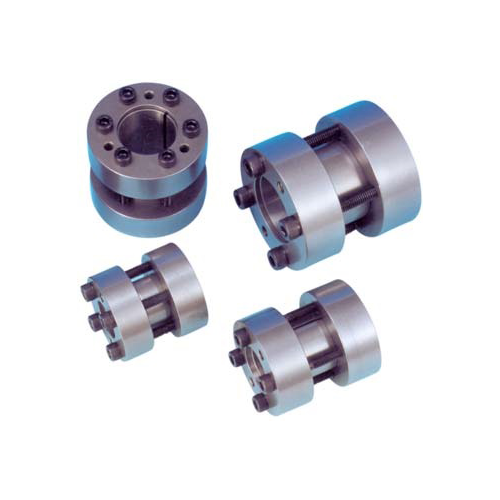

SK NSPT-LOCKS is formed by one inner circle, two taper tightening rings with taper surface and matching

tightening bolts. They have the characteristics of structure simplicity, easy installation, good durability and

low production and maintenance costs.

The installation of SK NSPT-LOCKS is as followed:

By tightening the bolts, two tightening rings will press the inner circle with outer taper surface, making it

create the radial pressures and frictional forces to connect the hub and the shaft. It is the same operating

method as SD NSPT-LOCKS.

Product range：

Standards

Series Type

SizeRange

ANSI/DIN

SK

CL15x45SK至CL110x160SK

ANSI Catalog:ANSI SK Type CAPT-LOCKS.pdf
DIN Catalog:DIN SK Type CAPT-LOCKS.pdf
